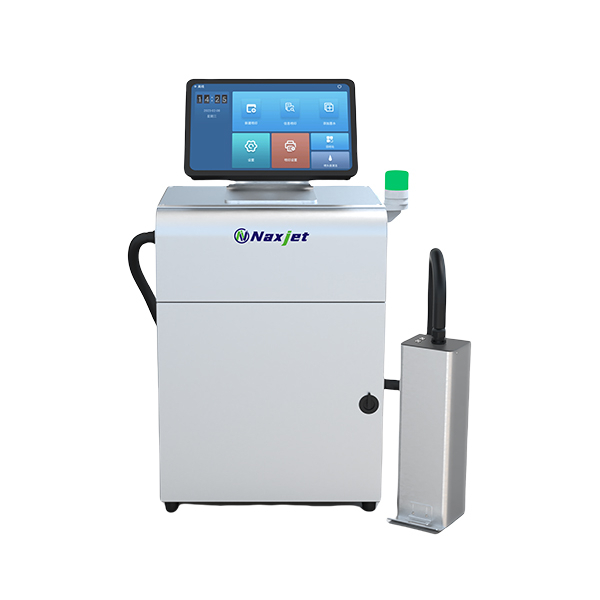

The Naxjet N3 is a high-performance industrial UV inkjet printer designed for industry 4.0. It offers a seamless “What you see is what you get” user experience. Whether you are printing on glass, metal, PVC, or corrugated boards, the N3 delivers exceptional reliability and precision.

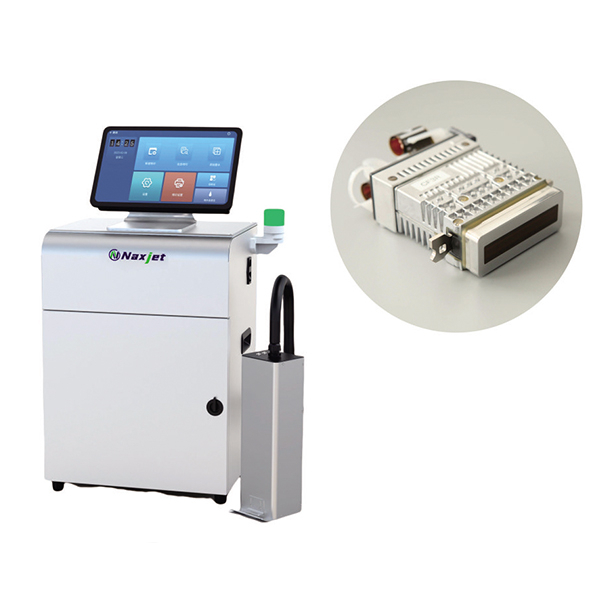

Our patented high-flow internal circulation system ensures that air bubbles and impurities are automatically removed from the print chamber. This guarantees stable continuous printing, extends nozzle lifespan, and allows for an incredible standby time of up to one month.
With a 600DPI physical resolution and a print height of 53.95mm, The N3 UV high-definition inkjet printer achieves stunning detail. It minimizes color differences and eliminates streaks or ghosting common in traditional heads.
Reaching speeds of up to 108m/min, the N3 is built for efficiency. The ink droplets travel at speeds exceeding 10m/s, ensuring high accuracy even in high-drop or high-gap printing scenarios.
Our optimized system helps you save 30% to 50% on ink consumption compared to traditional methods.
Model | N3 |
System | Variable Data High-speed Printing system (Android / Windows) |
Screen | 13.3-inch screen |
Nozzle Type | CF3 |
Printhead Height | 53.95mm |
Physical Resolution | 600 DPI |
Printing Direction Resolution | 100 DPI to 3000 DPI |
Ink Dot Size | 3.5PL and 6PL are optional |
Ink Dot Type | From 1 to 5 o’clock |
Printing Distance | 1-20 mm |
Number of Nozzle Columns | 2 |
Resolution of Each Nozzle Column | 300DPI |
Pipeline Direction Resolution | 150, 300, 600, 1200 |
Speed | ≤108 m/min |
Printing Direction | Top spray, bottom spray, side spray |
Temperature / Humidity | 0℃ - 45℃, <80RH |
