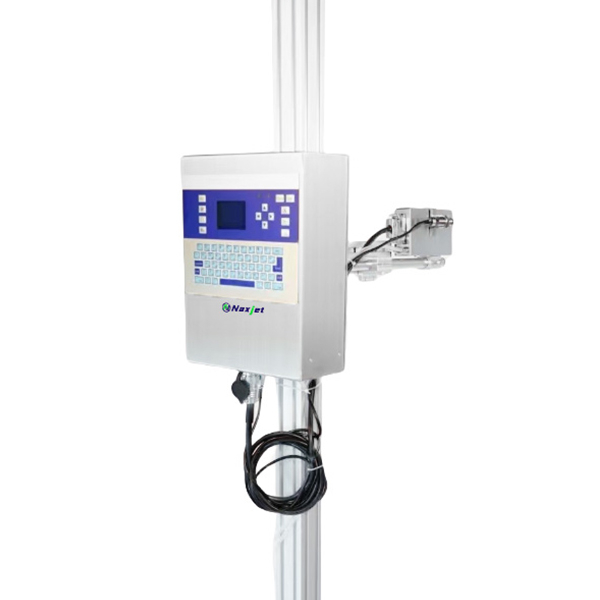

NAXJET DOD large character inkjet printer is well-known in the construction industry, packaging industry, and steel structure industry. Its special printhead system can drive a max of 4 heads by one controller and can supply 7 dots, 16 dots, 32 dots head. Customized data cable & ink pipe available. Moreover, prevent clogging and fast clean function to keep printer suitable for a long time running within a hostile environment. More importantly, the ink system of this inkjet coding machine has its own alarm system. When lacking ink, it will trigger, could remind users promptly to guarantee printer continues printing a long time. The large character inkjet coding machine could print on concrete products, pipes, cartons, woods, plastic, aluminum foils, cardboard boxes, stones, etc. 302x240STN screen makes complete printing contents available for review. It not only can print logos, batch numbers, serial numbers, shift numbers, special marks but also can print count numbers, available to set starting numbers and end numbers.
Powered by an outstanding ARM Cortex M3 microcontroller and built on a highly integrated SOP system, the SK1000 delivers exceptionally stable performance and robust anti-interference capabilities for uninterrupted production lines
With refined sealing performance and an integrated air source, the SK1000 is specifically designed to thrive in poor on-site environments and heavy-dust industrial occasions
Effortlessly print alphanumeric text, symbols, and a wide array of dynamic, variable data including real-time clocks (RTC), dates, shifts, and 1 to 8-digit incremental or decremental counters
Take full control over your packaging aesthetics by adjusting print dot size (0–1000), character height (10–20 mm), character width, character/string inversions, character/string reversals, and print delay (0–60000)

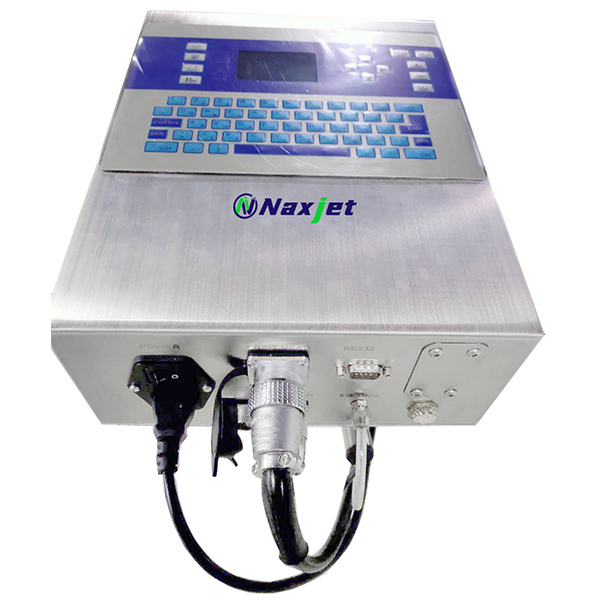

Operate directly via an on-board keypad, making it quick and easy to input messages, configure print parameters, and save valuable operational setup time
Each single message can store up to 100 characters in a 5x7 matrix, with a standard storage capacity of up to 30 files
Height of Character | 10-20mm |
Print Speed | 0.2m~91m/min |
Font | 5x7 (5x5 、4*7 is option) |
Print Function | char’s inverse, char’s reverse, char’s string reverse 1-8digits increase / decrease count RTC timer, date, shifts |
Print Distance | 5~30 mm |
Memory (30 files) | Eachfile can be stored 100 characters with 5X7 matrix (more files is option) |
Power | 220AC+ 10%，50Hz |
Environment Conditions | 0℃~45℃ |
Relative Humidity | 10-90% (non-condensing) |
Ink Type | MEK ink, Water-based ink, n-Propanol ink, etc. |
Chassis dimensions | 330mm*250mm*125mm |
Print Head Size | 170mm*40mm*60mm |
Ready Output | To show the printer is ready for print or not, the signal can drive LED part directly. |
RS232 Port | 9600-N-8-1 |
