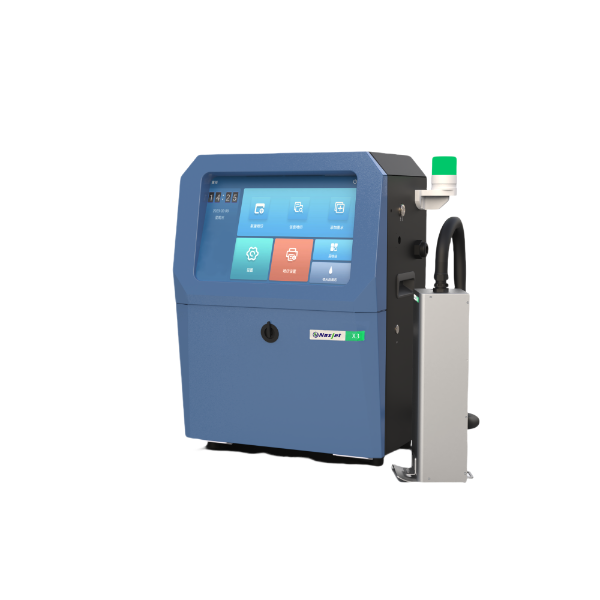

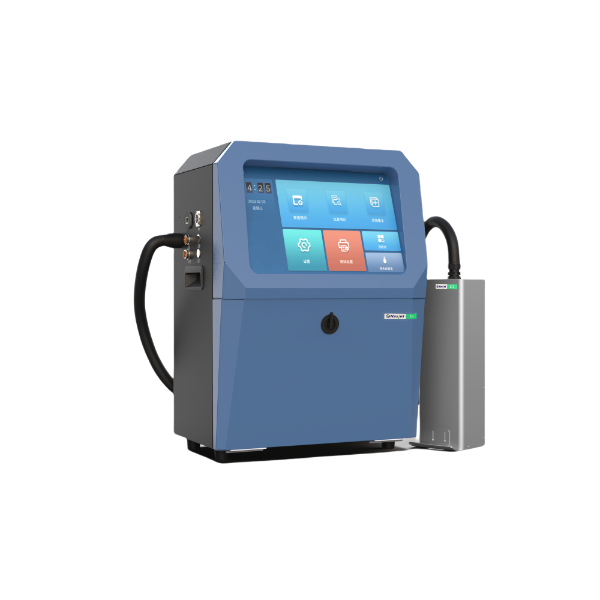

N1/N2/N3L/N5 PIJ UV High Speed Inkjet Printer

Industrial PIJ UV high-resolution inkjet printer with speeds up to 330m/min. Supports 300-450DPI printing, UV ink, and stable negative pressure ink supply for reliable industrial coding.

Details

UV High-definition Inkjet Printer Introduction

The PIJ high-resolution inkjet printer is a coding device that uses piezoelectric inkjet technology, a "gentle" yet precise technology. It is a non-contact inkjet printer widely used in industrial marking and packaging printing, characterized by high printing accuracy, long lifespan, and wide ink adaptability.

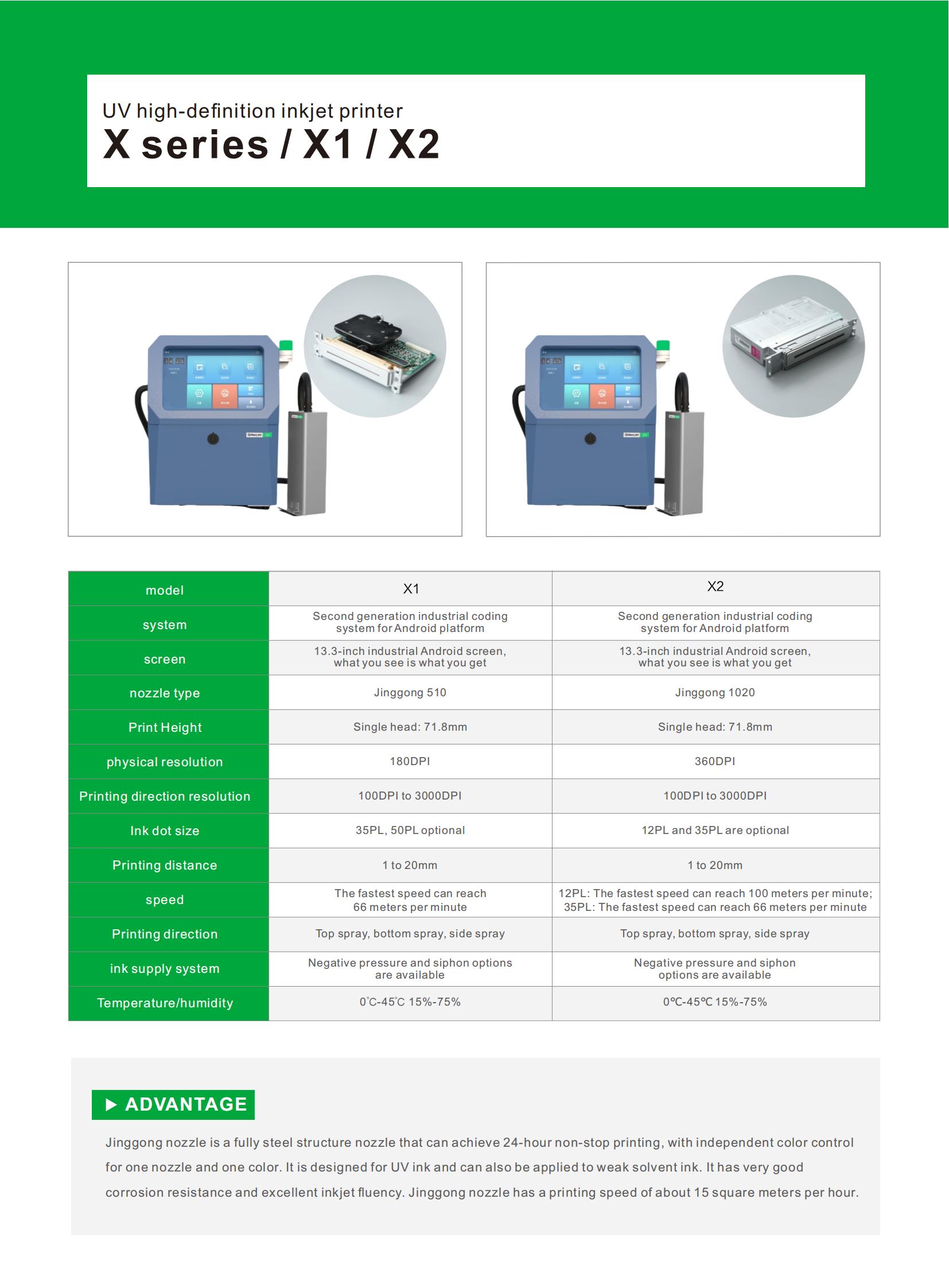

Specification of N series High Resolution Inkjet Printer

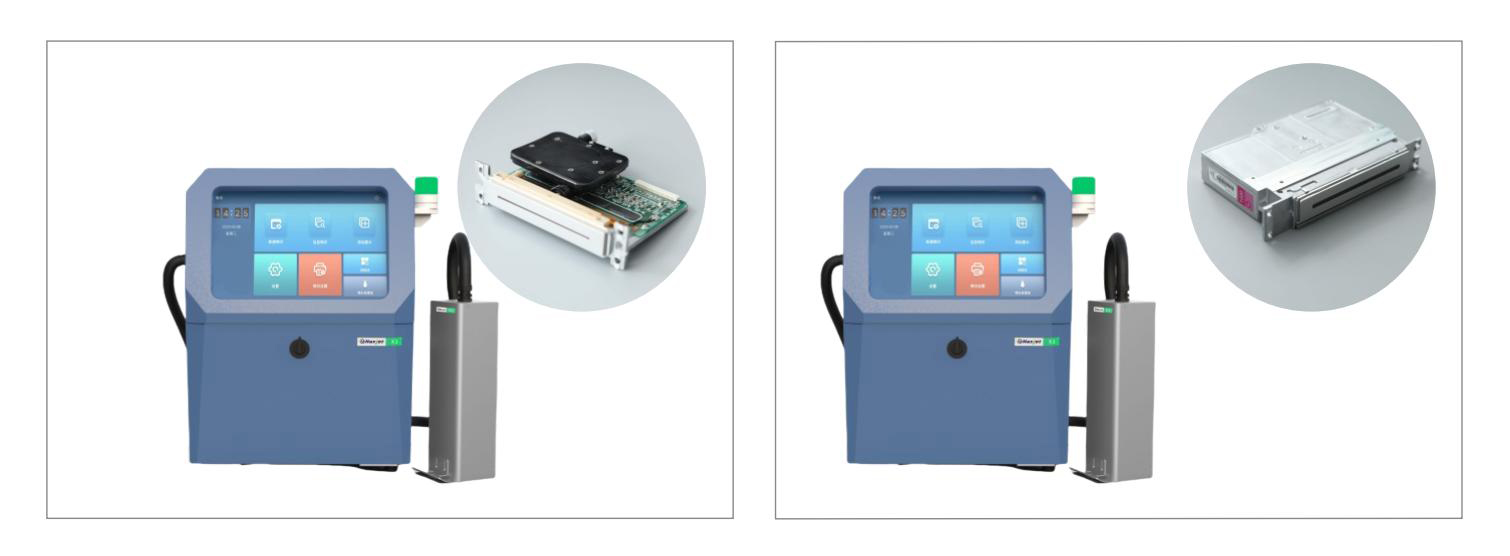

Model	N1	N2
System	Second generation industrial coding system for Android platform	Second generation industrial coding system for Android platform
Screen	13.3-inch industrial Android screen What you see is what you get!	13.3-inch industrial Android screen What you see is what you get!
Nozzle type	Jinggong 510	Jinggong 1020
Print Height	Single Head: 71.8mm	Single Head: 71.8mm
Physical resolution	180 DPI	360 DPI
Printing Direction Resolution	100 DPI to 3000 DPI	100 DPI to 3000 DPI
Ink Dot Size	35PL and 50PL are optional	12PL and 35PL are optional
Printing Distance	1-20 mm	1-20 mm
Speed	≤66 m/min	12PL:≤100 m/min 35PL:≤66 m/min
Printing Direction	Top spray, bottom spray, side spray	Top spray, bottom spray, side spray
Ink Supply System	Negative pressure and siphon options are available.	Negative pressure and siphon options are available.
Temperature / Humidity	0℃ - 45℃ 15% - 75%	0℃ - 45℃ 15% - 75%

Jinggong Industrial Nozzle Advantages

The Jinggong industrial printhead features a fully steel structure, ensuring high durability for continuous industrial production.

Key benefits include:

Supports 24-hour continuous printing
Independent color control (one nozzle one color)
Optimized for UV ink and weak solvent ink
Excellent corrosion resistance
Stable ink flow for high-precision printing

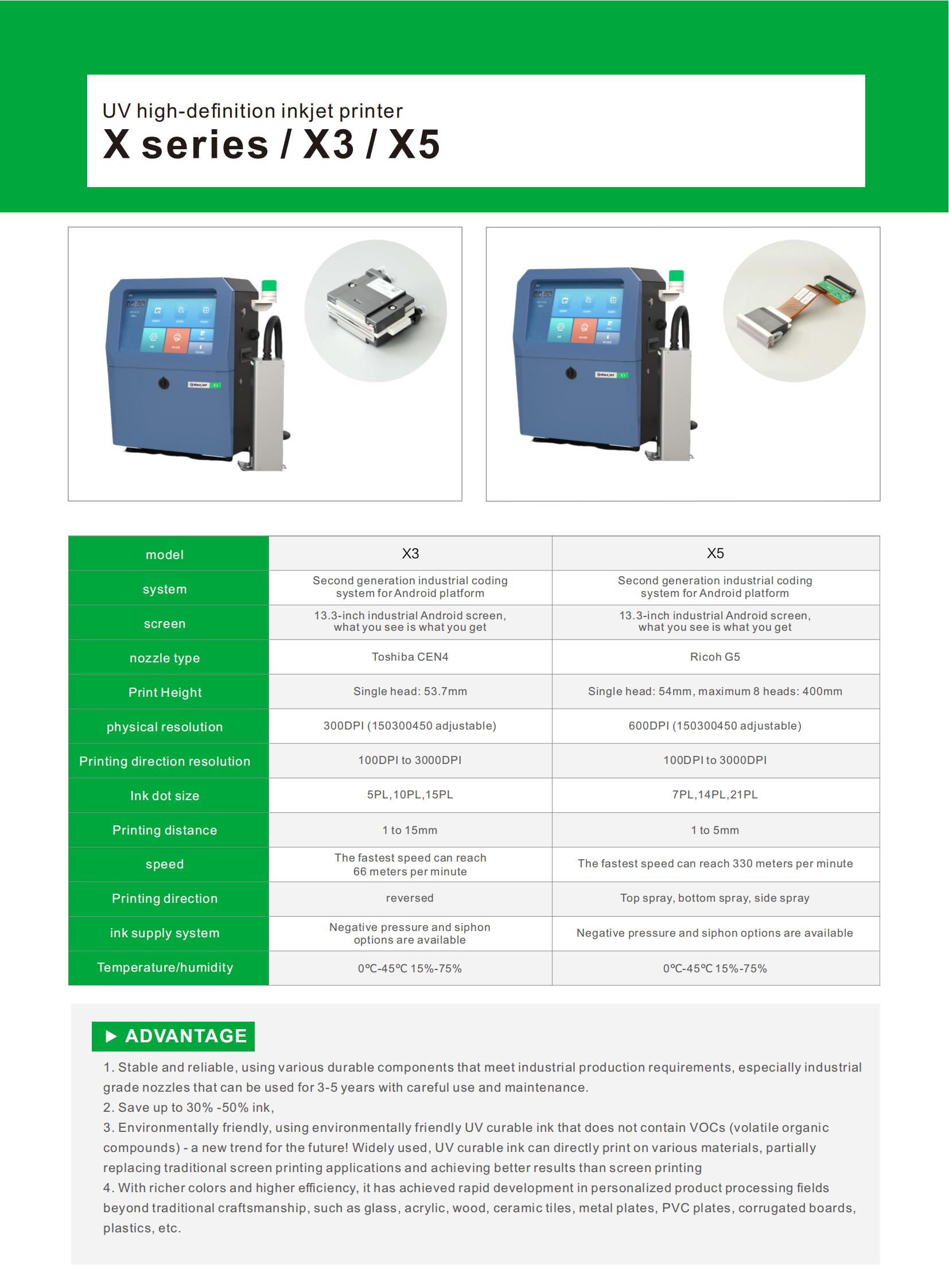

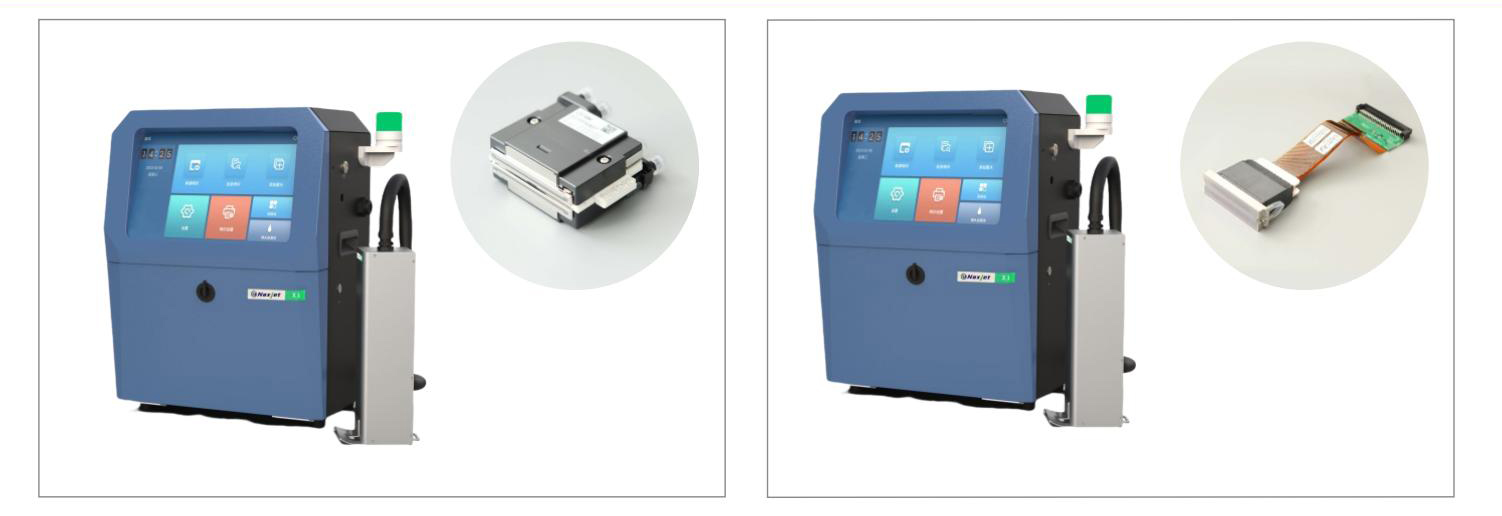

Model	N3L	N5
System	Second generation industrial coding system for Android platform	Second generation industrial coding system for Android platform
Screen	13.3-inch industrial Android screen What you see is what you get!	13.3-inch industrial Android screen What you see is what you get!
Nozzle type	Toshiba CEN4	Ricoh G5
Print Height	Single Head: 53.7mm	Single Head: 54mm Max 8 Heads: 400mm
Physical resolution	300 DPI (150/300/450 adjustable)	600 DPI (150/300/450 adjustable)
Printing Direction Resolution	100 DPI to 3000 DPI	100 DPI to 3000 DPI
Ink Dot Size	5PL, 10PL, 15PL	7PL, 14PL, 21PL
Printing Distance	1-15 mm	1-5 mm
Speed	≤66 m/min	≤330 m/min
Printing Direction	Reversed	Top spray, bottom spray, side spray
Ink Supply System	Negative pressure and siphon options are available.	Negative pressure and siphon options are available.
Temperature / Humidity	0℃ - 45℃ 15% - 75%	0℃ - 45℃ 15% - 75%

Advantages of N series UV High-definition inkjet printer

Stable and reliable, using various durable components that meet industrial production requirements, especially industrial grade nozzles that can be used for 3-5 years with careful use and maintenance
Save up to 30% -50% ink.
Environmentally friendly, using environmentally friendly UV curable ink that does not contain VOCs (volatile organiocompounds) -a new trend for the future! Widely used, UV curable ink can directly print on various materials, partially replacing traditional screen printing applications and achieving better results than screen printing.
With richer colors and higher efficiency, it has achieved rapid development in personalized product processing fields beyond traditional craftsmanship, such as glass, acrylic, wood, ceramic tiles, metal plates, PVC plates, corrugated boards, plastics, etc.

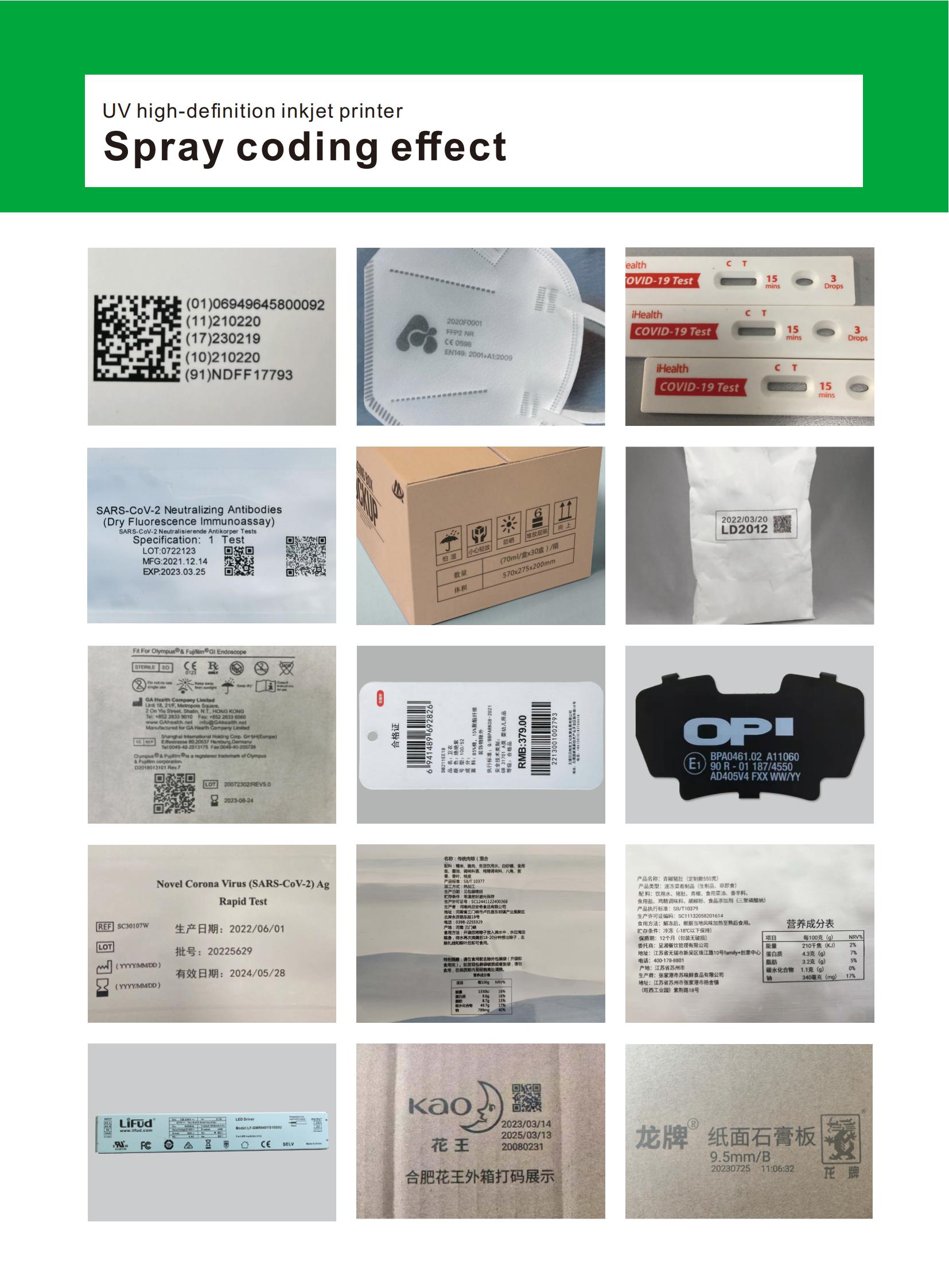

Industrial Applications of PIJ UV Inkjet printers

PIJ UV high-resolution inkjet printers are widely used in industrial production lines for high-precision coding and packaging printing.

Typical applications include:

Carton packaging coding
Glass bottle printing
Plastic packaging marking
Metal plate coding
Wood and decorative board printing
Corrugated box variable data printing
